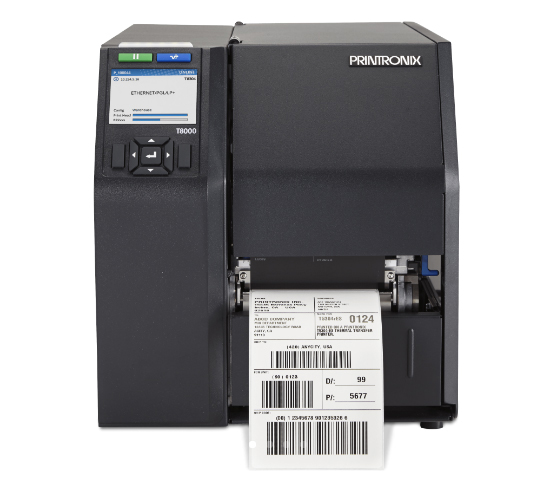

PRINTRONIX T8000

Description

The T8000 is the premier high-end thermal printer. With unmatched industrial performance, easy to use, and 100% verifiable output, the T8000 exceeds the requirements of the most demanding mission critical manufacturing and distribution operations. Rugged design with industry leading capabilities to print PostScript/PDF, print in sub-zero temperatures without heated enclosures, all while remotely managing your environments with PrintNet Enterprise.

chemicals industries

Industrial manufacturing

logistics / Coriur

Consumer durables

New 3.5 ” full color display panel with easy to use navigation keys
Most extensive library of print emulations in the industry, including Postscript/PDF printing
Intuitive printer setup, print quality, and self-help wizard
Quick Change Memory Card stores printer configuration and network settings for easy installation of new printers
Seamless integration & connectivity with robust remote printer management
40% faster print speed, 6x faster processing speed, and 8x more memory than the competition

Rugged design for the most demanding global customers and the harshest environments
Energy Star compliant
Online Barcode Data Validation (ODV-1D) technology is available as an option on the T8000. Our more advanced Online Barcode Data Verification solution is also available on the T8000 but is marketed under the model ODV-2D. ODV Technology reads each barcode as it is printed, grades each barcode, strikes-over rejected barcodes and automatically prints a new label.
Automatic capture of statistics that can be used as certification stamp and audit
Eliminates compliance fines and returned shipments with 100% accurate barcodes, 100% of the time.

MODEL NO.	T8000
Printing Method	Thermal Transfer & Direct Thermal
Printer Language	PGL/VGL/ZGL/TGL/IGL/STGL/DGL/IEGL/MGL
Ethernet (Standard)	Yes
Print Width	4.1” (104mm)/6.6” (168mm) /8.5” (216mm)
Resolution	8 dots/mm (203 DPI) / 12 dots/mm (300 DPI)
Print Speed (ips)	(4”/6”/8”): 14/12/10 IPS @ 203 / 12/10/8/ IPS @300 DPI
Media Type	Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets
Media Width	4.5” (114.3mm)/6.8” (172.7mm) /8.75” (222.2mm)
Media Core Diameter	76.2 mm (3“)
Label Roll Capacity	8.0” (209mm)
Ribbon Capacity	625 meter long, max. OD 90 mm,1“ core
Wifi	Factory Optional
Bluetooth	NA
Enclosure	Die-cast aluminum frame w/metal doors

Weight	19.5 kg
Processor	High performance ARM Cortex-A9
Display	3.4” full color display
Memory	• 512 MB RAM memory • 128 MB Flash memory
Interface	• RS-232 • USB 2.0 • Internal Ethernet
Sensor	• Gap • Mark • Advanced Gap • Advanced Notch
Power	Line Input: Auto Range 90 – 264 VAC (48 – 62 Hz)
Button	• 9 Button keypad
Motor	Triple Motor
Operation Environment	RoHS, WEEE, Energy Star
