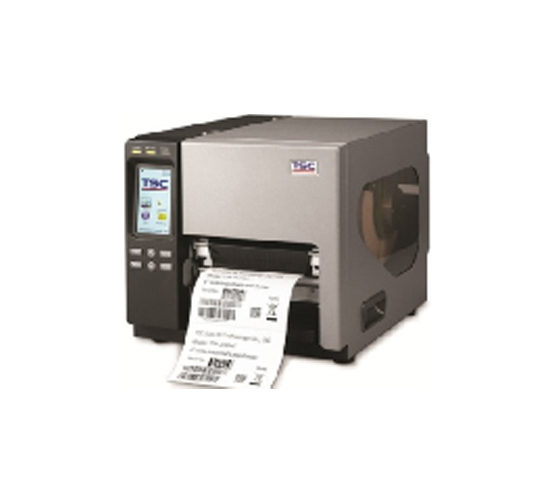

TSC TTP 2610MT / 368MT

Description

The TTP-2610MT Series features the best print quality TSC has ever offered in a wide web printer thanks to new printhead technology combined with faster processors and upgraded firmware. We call our enhanced print quality "Thermal Smart Control" which tracks and precisely calculates the duration that each pixel needs to be heated to provide accurate, crisp, and clear labels every time, whether you are printing one label at a time or thousands of labels in a batch. There are two models available with the new TTP-2610MT Series. The TTP-2610MT features 203 dpi resolution at speeds up to twelve inches per second, TTP-368MT offers 300 dpi resolution at speeds up to ten inches per second.

icon image of Chemicals Industries

chemicals industries

icon image of Industrial Manufacturing

Industrial manufacturing

icon image of Logistics / Courier

logistics / courier

icon image of Consumer Durables

Consumer durables

icon image of Warehousing

warehousing

  • High-quality die-cast aluminum design
  • "Thermal Smart Control" print technology produces clean, high quality barcodes
  • 4.3" color LCD with 6-button menus and touch panel operation
  • 203 dpi and 300 dpi models
  • Ethernet, USB 2.0, USB host, serial and parallel connectivity are standard
  • 256 MB SDRAM, 512 MB Flash
  • SD Flash card memory expands storage to 32 GB
  • Powerful 32 bit 536 MHz RISC processor
  • Auto TPH resolution switch detection
  • Standard industry emulations right out of the box including Eltron® and Zebra® language support
  • USB host for stand-alone or data entry at print site
MODEL NO. TTP-2610MT / 368MT
Printing Method Thermal Transfer & Direct Thermal
Printer Language TSPL-EZTM ( EPL, ZPL, ZPL II)
Ethernet (Standard) Yes
Print Width 168 mm (6.61“)
Resolution 8 dots/mm (203 DPI) / 12 dots/mm (300 DPI)
Print Speed (ips) 305 mm (12”) / 254 mm (10”)
Media Type Continuous, die-cut, black mark, fan-fold, notched & Tag stock
Media Width 50.8 ~ 172.7 mm
Media Core Diameter 76.2 mm (3“)
Label Roll Capacity 203.2 mm (8“) OD
Ribbon Capacity 6450 meter long, max. OD 81 mm, 1“ core
Wifi Factory Optional
Bluetooth Optional accessory
Enclosure Die-cast aluminum frame /Metal cover with large clear media view window
Weight 23 kg
Processor 32-bit RISC CPU
Display 16 bits Color, 480 x 272, Resistive Touch Screen
Memory • 512 MB Flash memory
• 256 MB SDRAM
• microSD Flash memory card
Interface • RS-232 • USB 2.0
• Internal Ethernet,
• USB host
Sensor • Gap transmissive sensor
• Black mark reflective sensor
• Ribbon end sensor
• Ribbon Encoder sensor
• Head open sensor
Power Internal universal switching power supply
• Input: AC 100-240V, 3.0A, 50-60Hz
• Output: DC 24V, 8.33A, 200W
Button 6 operation buttons
Motor Dual-motor
Operation Environment Comply with RoHS, WEEE
Suitable for following applications
  • Compliance Labeling For Shipping & Receiving
  • Pallet Labeling
  • Inventory Control Labeling
  • Drum Labeling
  • Warning Labels
  • Custom Signage
  • Brand Marketing Featuring Graphics, Logos & Texts
  • Multiple-up Labels (two or three labels across)
