TSC

TSC MB 241T / 341T

A 4 inch industrial label printer with a colour touchscreen.

Mid Ranged Barcode Printers

Resolution: 203 dpi (8 dots/mm) (MB241T) / 300 dpi (12 dots/mm) (MB341T)
Print Method: Direct thermal/Thermal transfer
Display: Color LCD touchscreen with buttons
Hardwire Connectivity: Ethernet, GPIO, Serial RS-232, USB, USB Host

Download datasheet WhatsApp us

Where it is used

Industrial Manufacturing
Logistics & Courier
Retail
Healthcare
Track & Trace

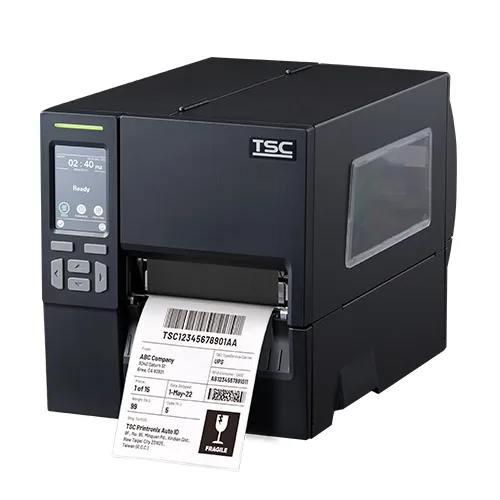

About the TSC MB 241T / 341T

The TSC MB 241T and MB 341T are 4 inch industrial printers in a die-cast frame with a metal cover, built for production lines and busy dispatch areas. The T models add a colour touchscreen to the button panel, which makes changing settings and label jobs quicker on the floor.

They print up to 12 inches per second, take an 8 inch label roll and a 450 metre ribbon, and connect over Ethernet, serial, USB and GPIO, with Bluetooth and Wi-Fi available.

Key points

Colour LCD touchscreen with buttons
203 dpi (MB 241T) or 300 dpi (MB 341T)
Up to 12 ips print speed
8 inch label roll and 450 metre ribbon capacity
Ethernet, RS-232, USB, USB host and GPIO; Bluetooth and Wi-Fi available
Die-cast print mechanism with a metal cover

Suitable applications

Healthcare and laboratory labelling
Manufacturing and work in progress
Retail labelling
Linerless labels
RFID on-metal tags
RFID labels and tags
Shipping and receiving labels

See the TSC MB 241T / 341T in action

Full specification

TSC MB 241T / 341T datasheet The manufacturer's complete technical specification, as a PDF.

Download datasheet

View full specification

Resolution: 203 dpi (8 dots/mm) (MB241T) / 300 dpi (12 dots/mm) (MB341T)
Print Method: Direct thermal/Thermal transfer
Display: Color LCD touchscreen with buttons
Hardwire Connectivity: Ethernet, GPIO, Serial RS-232, USB, USB Host
Wireless Connectivity: Bluetooth, Bluetooth MFi, Wi-Fi with Bluetooth
Type: Industrial
Max. Print Speed: 12 ips (304.8 mm/s) (MB241T) / 9 ips (228.6 mm/s) (MB341T)
Max. Print Width: 4.21" (107 mm) (MB241T) / 4.16" (105.7 mm) (MB341T)
Max. Print Length: 1,000" (25,400 mm) (MB241T) / 450" (11,430 mm) (MB341T)
RAM: 256 MB SDRAM
Flash: 256 MB

Optional Cutter: Regular guillotine cutter (full cut)
Internal Label Capacity: 8" (203.2 mm) OD
Max. Media Width: 0.8" - 4.7" (20 - 120 mm)
Ribbon & Media Type: Continuous; Die-Cut; Black Mark; Fan-Fold; Notch (Outside Wound)
Max. Ribbon Length: 450 Meters
Max. Ribbon Width: 1.6" - 4.3" (40 - 110 mm)
Media Core Diameter: 1" to 3" (25.4 - 76.2 mm)
Min. Label Length: 0.2"-1000" (5 mm -25,400 mm) (MB241T) / 0.2"-450" (5 mm -11,430 mm) (MB341T)
Construction: Die-cast based print mechanism/Metal cover with large clear media, window
Programming Languages: TSPL-EZD
