TSC

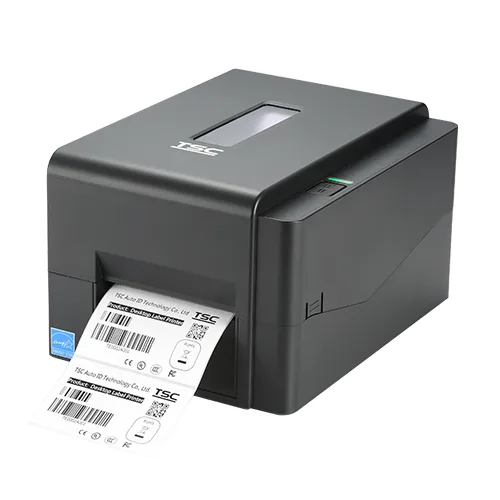

TSC TE 210 / 310

A 4 inch desktop label printer with Ethernet, serial and USB as standard.

Entry Level Barcode Printers

Resolution: 203 dpi (8 dots/mm) (TE210) / 300 dpi (12 dots/mm) (TE310)
Print Method: Direct thermal/Thermal transfer
Display: LED with buttons
Hardwire Connectivity: Ethernet, Serial RS-232, USB, USB Host

Download datasheet WhatsApp us

Where it is used

Logistics & Courier
Warehousing
Healthcare
Product & Item Labels
Small Labels

About the TSC TE 210 / 310

The TSC TE 210 and TE 310 are 4 inch desktop thermal transfer printers for shipping labels, product labels and small item tags. The TE 210 prints at 203 dpi and up to 6 inches per second, and the TE 310 at 300 dpi for finer text and small barcodes.

Both connect over Ethernet, RS-232 serial and USB as standard, with Bluetooth and Wi-Fi as options, so the same model fits a single desk or a networked dispatch area.

Key points

203 dpi (TE 210) or 300 dpi (TE 310) print resolution
Up to 6 ips on the TE 210 and 5 ips on the TE 310
Ethernet, RS-232 serial, USB and USB host built in
Optional Bluetooth and Wi-Fi
Takes a 300 metre ribbon and a 5 inch label roll
Optional guillotine cutter for full and partial cuts

Suitable applications

Healthcare and laboratory labelling
Transport and logistics
Warehouse and order fulfilment
Product and item labels
Shipping and receiving labels
Small labels and tags

See the TSC TE 210 / 310 in action

Full specification

TSC TE 210 / 310 datasheet The manufacturer's complete technical specification, as a PDF.

Download datasheet

View full specification

Resolution: 203 dpi (8 dots/mm) (TE210) / 300 dpi (12 dots/mm) (TE310)
Print Method: Direct thermal/Thermal transfer
Display: LED with buttons
Hardwire Connectivity: Ethernet, Serial RS-232, USB, USB Host
Wireless Connectivity: Bluetooth, Wi-Fi
Type: Desktop
Max. Print Speed: 6 ips (152 mm/s) (TE210) / 5 ips (127 mm/s) (TE310)
Max. Print Width: 4.25" (108 mm) (TE210) / 4.16" (105.7 mm) (TE310)
Max. Print Length: 1,000" (24,400 mm) (TE210) / 450" (11,430 mm) (TE310)
RAM: 64 MB SDRAM

Flash: 128 MB
Optional Cutter: Guillotine cutter (full cut and partial cut)
Internal Label Capacity: 5" (127 mm) OD
Max. Media Width: 0.8" - 4.4" (20 - 112 mm)
Ribbon & Media Type: Continuous; Die-Cut; Black Mark; Fan-Fold; Notched (Outside Wound)
Max. Ribbon Length: 300 Meters
Max. Ribbon Width: 1.6" - 4.3" (40 - 110 mm)
Media Core Diameter: 1.0" - 1.5" (25.4 - 38 mm) (TE210) / 1" - 1.5" (25.4 - 38 mm) (TE310)
Construction: ABS plastic
Programming Languages: TSPL-EZD
