TSC

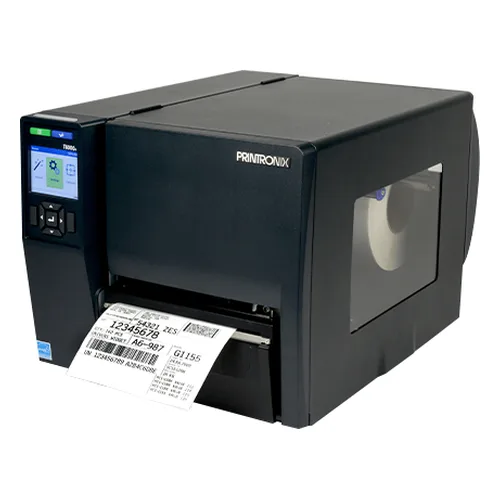

TSC Printronix T6206e / T6306e

A 6 inch enterprise industrial printer from the T6000e series.

Industrial Barcode Printers

Resolution: 203 dpi (8 dots/mm) (T6206e) / 300 dpi (12 dots/mm) (T6306e)
Print Method: Direct thermal/Thermal transfer
Display: Color LCD with buttons
Hardwire Connectivity: Ethernet, GPIO, Parallel port, Serial RS-232, USB

Download datasheet WhatsApp us

Where it is used

Industrial Manufacturing
Logistics & Courier
Healthcare
Automotive
Product & Item Labels

About the TSC Printronix T6206e / T6306e

The TSC T6206e and T6306e are the 6 inch models of the T6000e series, for wide labels such as pallet, drum and compliance labels. They are built on a die-cast aluminium frame with a metal door.

They print up to 12 inches per second at 203 dpi, or 10 at 300 dpi, carry 512 MB of memory with an SD card slot, and support nine competing printer languages so they can replace an existing printer without relabelling work.

Key points

6.55 inch print width for wide labels
203 dpi (T6206e) or 300 dpi (T6306e)
Up to 12 ips at 203 dpi
512 MB memory and an SD card slot up to 32 GB
Nine printer language emulations
Die-cast aluminium frame with metal door

Suitable applications

Automotive parts and compliance labels
Healthcare and laboratory labelling
Manufacturing and work in progress
Product and item labels
Shipping and receiving labels

Full specification

TSC Printronix T6206e / T6306e datasheet The manufacturer's complete technical specification, as a PDF.

Download datasheet

View full specification

Resolution: 203 dpi (8 dots/mm) (T6206e) / 300 dpi (12 dots/mm) (T6306e)
Print Method: Direct thermal/Thermal transfer
Display: Color LCD with buttons
Hardwire Connectivity: Ethernet, GPIO, Parallel port, Serial RS-232, USB
Wireless Connectivity: Wi-Fi
Type: Industrial
Max. Print Speed: Up to 12 ips (305 mm/s) @ 203 dpi (T6206e) / Up to 10 ips (254 mm/s) @ 300 dpi (T6306e)
Max. Print Width: 6.55” (166mm)
RAM: 512 MB
Flash: 128 MB

Expandable Flash: SD memory card reader; up to 32 GB
Optional Cutter: Heavy Duty Cutter
Max. Media Width: 6.8" (172.7 mm)
Ribbon & Media Type: Roll or Fan-Fold Labels; Tags; Paper; Film; Tickets
Max. Ribbon Length: 450 Meters
Max. Ribbon Width: 6.8" (172.7 mm)
Media Core Diameter: 1.5” (38.1 mm) to 3.0” (76.2 mm)
Min. Label Length: Continuous 1.0”(25.4mm); Tear-Off 1.0” (25.4mm); Peel-Off 1.0” (25.4mm)；Cutter 1.0” (25.4mm)
Construction: Die-cast aluminum frame with metal door
Programming Languages: Support for 9 competitive printer languages
