TSC

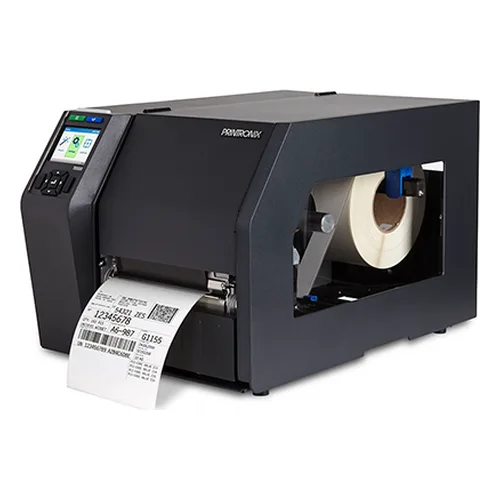

TSC Printronix T8206 / T8306

A 6 inch high-volume industrial printer from the T8000 series.

Industrial Barcode Printers

Resolution: 203 dpi (8 dots/mm) (T8206) / 300 dpi (12 dots/mm) (T8306)
Print Method: Direct thermal/Thermal transfer
Display: Color LCD with buttons
Hardwire Connectivity: Ethernet, GPIO, Parallel port, Serial RS-232, USB

Download datasheet WhatsApp us

Where it is used

Industrial Manufacturing
Logistics & Courier
Healthcare
Automotive
Product & Item Labels

About the TSC Printronix T8206 / T8306

The TSC T8206 and T8306 are the 6 inch models of the T8000 series, the top of the TSC Printronix Auto ID industrial range, for continuous high-volume printing. The frame and print mechanism are die-cast aluminium.

They take a 625 metre ribbon, which means fewer ribbon changes on long runs, and print up to 12 inches per second at 203 dpi.

Key points

6.6 inch print width
203 dpi (T8206) or 300 dpi (T8306)
Up to 12 ips at 203 dpi
625 metre ribbon for long unattended runs
512 MB memory
Nine printer language emulations

Suitable applications

Automotive parts and compliance labels
Healthcare and laboratory labelling
Manufacturing and work in progress
Product and item labels
Shipping and receiving labels

See the TSC Printronix T8206 / T8306 in action

Full specification

TSC Printronix T8206 / T8306 datasheet The manufacturer's complete technical specification, as a PDF.

Download datasheet

View full specification

Resolution: 203 dpi (8 dots/mm) (T8206) / 300 dpi (12 dots/mm) (T8306)
Print Method: Direct thermal/Thermal transfer
Display: Color LCD with buttons
Hardwire Connectivity: Ethernet, GPIO, Parallel port, Serial RS-232, USB
Wireless Connectivity: Wi-Fi
Type: Industrial
Max. Print Speed: Up to 12 ips (305 mm/s) @ 203 dpi (T8206) / Up to 10 ips (254 mm/s) @ 300 dpi (T8306)
Max. Print Width: 6.6" (168mm)
RAM: 512 MB
Flash: 128 MB

Optional Cutter: Heavy Duty Cutter
Max. Media Width: 6.8" (172.7 mm)
Ribbon & Media Type: Continuous, Die-Cut and Fan-fold
Max. Ribbon Length: 625 Meters
Max. Ribbon Width: 6.8" (172.7 mm)
Media Core Diameter: 1.5” (38.1 mm) - 3.0” (76.2 mm)
Min. Label Length: Continuous 0.25” (6.35mm); Tear-Off 0.25” (6.35mm); Peel-Off 1.0” (25.4mm)；Cutter 1.0” (25.4mm)
Construction: Die-cast aluminum frame and print mechanism; steel cover; large clear media view window
Programming Languages: Support for 9 competitive printer languages
