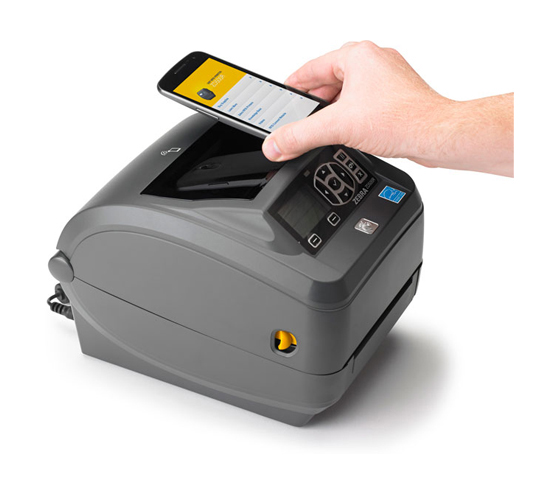

UHF RFID printing is even easier and at a lower cost of entry than ever with the ZDR500R. Perfect for applications where space is at a premium, the ZD500R offers a small footprint. The ZD500R supports next generation inlays and offers 802.11a/b/g/n wireless and Bluetooth connectivity to fit the needs of any UHF printing application.
retails / organise retails
Health Care
Industrial manufacturing
Government/DOD Compliance
Hospitality
| MODEL NO. | ZD500R |
|---|---|
| Printing Method | Thermal Transfer & Direct Thermal |
| Printer Language | ZPL programming language |
| Print Width | 4.09”/104 mm |
| Resolution | 203 dpi/8 dots per mm / 300 dpi/12 dots per mm (optional) |
| Print Speed (ips) | 6”/152 mm per second (200 dpi) / 4”/102 mm per second (300 dpi) |
| Media Type | Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands |
| Media Width | .003"/0.08 mm to .012"/0.305 mm |
|---|---|
| Media Core Diameter | 0.5"/12.7 mm, 1.0"/25 mm, 1.375"/35 mm, 1.5"/37.1 mm, 3"/76 mm |
| Label Roll Capacity | 0.75”/19 mm - 4.25”/108 mm |
| Ribbon Capacity | 244’/74 M |
| Wifi | 802.11 a/b/g/n and Bluetooth 3.0 |
| Weight | 7.6”/193 mm |
| Developer Tools | Provides you with the tools you need to create your own apps, including documentation, source code, programming languages, templates and more |
