Datalogic Gryphon 4500 Fixed Series

Compact 2D scan modules to build into kiosks, lockers, gates and machines, enclosed (GFS4500) or as a bare board (GFE4500).

Fixed Mount Scanners

Models: GFS4520 (USB), GFS4550 (RS-232), GFS4590 (USB/RS-232), GFE4590 (bare board, USB/RS-232)
Type: Fixed scan module, 2D imager
Image sensor: 1 MP, 1280 x 800 pixels
Field of view: 51° H, 32° V

Download datasheet WhatsApp us

Where it is used

Industrial Manufacturing
Retail
Healthcare
Hospitality

About the Datalogic Gryphon 4500 Fixed Series

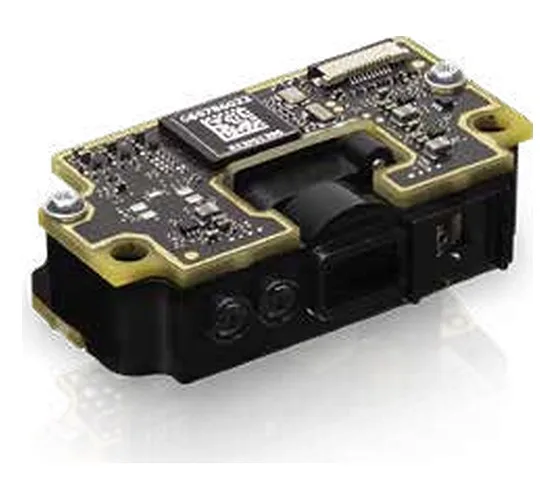

The Datalogic Gryphon 4500 Fixed Series are scan modules made to be built into other equipment. The enclosed GFS4500 fixes into an enclosure from several sides; the bare GFE4500 board suits fully integrated, made-to-order designs. Both read 1D, 2D, postal, stacked and DotCode symbols, and codes on phone screens such as tickets, boarding passes and loyalty cards.

A 1 MP wide-angle imager with red or white illumination reads from almost touching distance, with 70 ips motion tolerance. The modules are IP54 sealed with a UV-protected, scratch-resistant window, survive 1.5 m drops, and offer USB, RS-232 and digital I/O, with automatic, software, external or manual triggering.

Key points

Compact module to build into kiosks, lockers, gates and machines
Enclosed GFS4500 or bare-board GFE4500 versions
Reads 1D, 2D, postal, stacked and DotCode, including on phone screens
Automatic, software, external or manual triggering; digital I/O
IP54 sealed, UV-protected window, 1.5 m drop rated
USB, RS-232 or USB/RS-232 models

Suitable applications

Self-service and ticketing kiosks
Smart lockers and access gates
Airline self check-in
Print and apply label verification

Full specification

Datalogic Gryphon 4500 Fixed Series datasheet The manufacturer's complete technical specification, as a PDF.

Download datasheet

View full specification

Models: GFS4520 (USB), GFS4550 (RS-232), GFS4590 (USB/RS-232), GFE4590 (bare board, USB/RS-232)
Type: Fixed scan module, 2D imager
Image sensor: 1 MP, 1280 x 800 pixels
Field of view: 51° H, 32° V
Light source: Aiming: blue LEDs 470 nm. Illumination: red LED 617 nm or warm white LED
Frame rate: 60 full frames per second
Motion tolerance: 70 ips (EAN/UPC)
Reading angle: Pitch ±60°, roll ±180°, skew ±60°
Print contrast (min.): 15%
Resolution (max.): 1D 3 mil; Data Matrix 5 mil; PDF417 5 mil
Depth of field, 13 mil EAN/UPC: 4 ~ 82 cm
Depth of field, 10 mil Code 39: 1.7 ~ 53.5 cm
Depth of field, 15 mil Data Matrix: 3 ~ 35 cm
1D codes: All standard 1D codes including GS1 DataBar linear codes
2D codes: Aztec Code, Han Xin, Data Matrix, MaxiCode, Micro QR, QR Code, DotCode, Dot Matrix
Postal codes: Australian, British, China, Japanese and KIX Post, IMB, Planet, Postnet, Royal Mail (RM4SCC)

Stacked codes: EAN/JAN Composites, GS1 DataBar Composites, Expanded Stacked, Stacked and Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
Digital watermarks: Digimarc Barcodes (red illumination models)
Image capture: BMP, JPEG, TIFF; 256, 16 or 2 grey levels
Interfaces: GFS4520: USB (micro-USB). GFS4550: RS-232 (2 m cable, DB9). GFS4590: USB/RS-232 (RJ-50). GFE4590: USB/RS-232 (12-pin)
Digital I/O: GFS4550 / GFE4590: one programmable input and one output
Input voltage: GFS4520: 5 VDC ±5%; GFS4550 / GFX4590: 5 ~ 14 VDC
Current: Operating < 225 mA; standby 55 ~ 115 mA depending on mode
Dimensions: GFS4500: 2.8 x 4.8 x 5.5 cm; GFE4500: 2.0 x 2.7 x 4.8 cm
Drop: Repeated 1.5 m drops onto concrete
Vibration: 5 G, 22 ~ 300 Hz, 2 hours per axis
IP rating: IP54
Ambient light: 0 ~ 120,000 lux
Operating temperature: GFS4500: -20 ~ 50 °C (up to 55 °C); GFE4500: -20 ~ 60 °C
Storage temperature: -40 ~ 70 °C
Warranty: 5 years (manufacturer)
