Datalogic Gryphon GD4600 (2D)

A premium corded 2D imager with AI-assisted decoding, a green cross aimer and white or red illumination.

Handheld Barcode Scanners

Models: GD4620 (HD, USB-C / USB), GD4690 (HP, USB-C / USB / RS-232)
Type: Corded handheld 2D imager
1D codes: All standard 1D codes including GS1 DataBar linear codes
2D codes: Aztec Code, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR Code, DotCode, GS1 Digital Link

Download datasheet WhatsApp us

Where it is used

Industrial Manufacturing
Retail
Healthcare
Hospitality
Point of Sale

About the Datalogic Gryphon GD4600 (2D)

The Datalogic Gryphon GD4600 is a premium corded handheld scanner for 1D and 2D barcodes, including GS1 Digital Link, Digimarc and OCR. A dual-core processor with AI-based neural decoding speeds up reading of damaged, poorly printed or distorted codes and codes on shiny, reflective or curved surfaces, and it reads barcodes on phone screens.

A green central cross aimer makes targeting easy, and the illumination switches between warm white and red to suit the job. The HP models use dual sensors to read from near to far; the HD models read small, high-density codes. White healthcare models have an anti-microbial, disinfectant-ready enclosure. Five-year factory warranty.

Key points

AI neural decoding for damaged and hard-to-read codes
Reads 1D, 2D, GS1 Digital Link, Digimarc and OCR
Green cross aimer; warm white or red illumination
HP dual-sensor (near to far) or HD high-density models
Optional presentation base for hands-free use

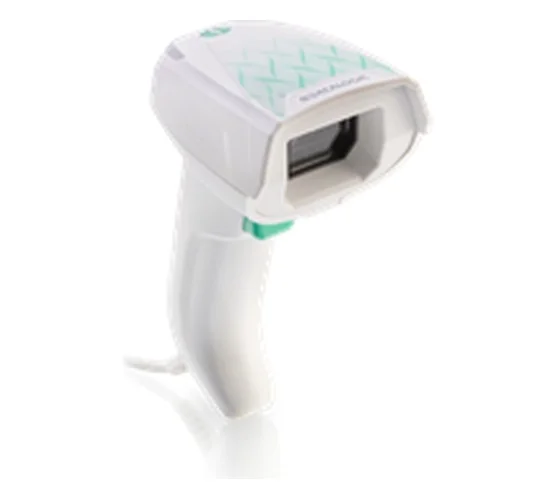

Anti-microbial healthcare models in white

Suitable applications

Retail point of sale
Work in progress and order processing
Laboratories, pharmacies and patient care
Access control, transport and ticketing
Post offices, banks and public offices

Full specification

Datalogic Gryphon GD4600 (2D) datasheet The manufacturer's complete technical specification, as a PDF.

Download datasheet

View full specification

Models: GD4620 (HD, USB-C / USB), GD4690 (HP, USB-C / USB / RS-232)
Type: Corded handheld 2D imager
1D codes: All standard 1D codes including GS1 DataBar linear codes
2D codes: Aztec Code, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR Code, DotCode, GS1 Digital Link
Postal codes: Australian, British, China, Japanese and KIX Post, IMB, Planet, Postnet, Royal Mail (RM4SCC)
Stacked codes: EAN/JAN Composites, GS1 DataBar Composites, Expanded Stacked, Stacked and Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
Digital watermarks: Digimarc Barcodes
OCR: OCR-A, OCR-B, MICR
Image sensor: HP models: 1.5 MP (1360 x 1120) plus VGA (640 x 600), dual sensor. HD models: 1.5 MP (1360 x 1120)
Light source: Aiming: green central cross LED. Illumination: warm white and hyper red LED, user-selectable
Motion tolerance: 70 ips
Reading angle: Pitch ±65°, roll 360°, skew ±65°
Print contrast (min.): 15%
Resolution (max.): 1D 3 mil; PDF417 3 mil; Data Matrix 4 mil
Depth of field, 13 mil EAN/UPC: HP: 0 ~ 100 cm; HD: 0 ~ 50 cm
Depth of field, 10 mil Code 39: HP: 0 ~ 60 cm; HD: 0 ~ 35 cm
Depth of field, 10 mil Data Matrix: HP: 0.5 ~ 29.5 cm; HD: 0.5 ~ 20 cm
Depth of field, 10 mil QR Code: HP: 0.5 ~ 25 cm; HD: 0.5 ~ 20 cm

Image capture: BMP, JPEG, TIFF; 256, 16 or 2 grey levels
Colours: Black, white (healthcare models with anti-microbial enclosure)
Drop: Repeated 1.8 m drops onto concrete
Tumble: 2,000 tumbles of 0.5 m
Trigger life: 10 million presses
IP rating: IP52
ESD protection: 16 kV air discharge
Ambient light: 0 ~ 110,000 lux
Operating temperature: 0 ~ 50 °C
Storage temperature: -40 ~ 70 °C
Humidity: 0 ~ 95% non-condensing
Interfaces: GD4620: USB-C / USB. GD4690: USB-C / USB / RS-232 multi-interface
Input voltage: GD4620: 5 VDC ±5%; GD4690: 4.5 ~ 14 VDC ±5%
Current: Operating < 300 mA at 5 V, < 150 mA at 12 V; standby < 70 mA at 5 V
Dimensions: 18 x 6.5 x 7.9 cm; 21 x 7.5 x 10.9 cm with presentation base
Weight: 144 g; 426 g with presentation base
Warranty: 5 years (manufacturer)
