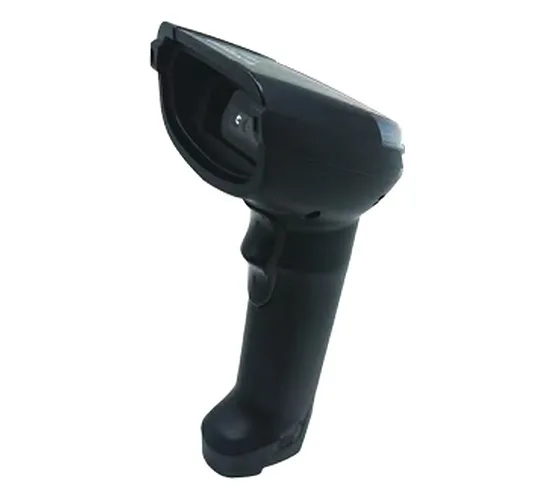

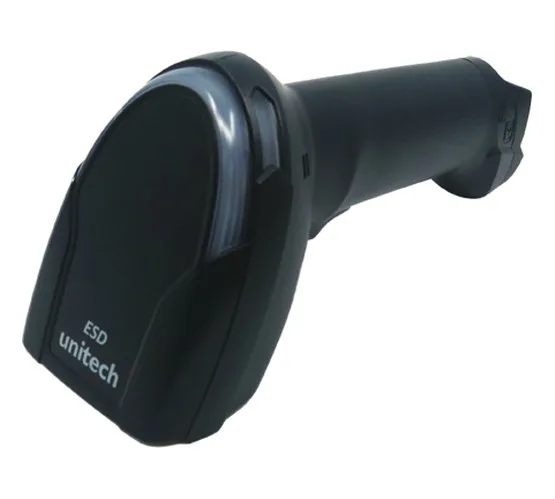

Unitech MS852+ ESD (2D)

An ESD-safe 2D imager for cleanrooms and static-sensitive electronics lines, with an antistatic body and cable.

Handheld Barcode Scanners

Model: MS852+ ESD
Type: 2D imager scanner, corded, ESD safe
Sensor: 1280 x 800 global shutter
Aiming: Red laser or 528 nm green LED

Download datasheet WhatsApp us

Where it is used

Industrial Manufacturing
Electronics

About the Unitech MS852+ ESD (2D)

The Unitech MS852+ ESD is a megapixel 2D imager made for cleanrooms and static-safe manufacturing areas. The antistatic agent is mixed into the plastic of the scanner and its cable, rather than coated on, so the protection does not wear off with cleaning. Body and cable stay within 10⁵ ~ 10⁹ ohms per square, with no chlorine content.

It reads 1D and 2D barcodes on labels and screens, damaged or poorly printed codes, OCR, DotCode and Digimarc. It is rated IP42, tested for 2.1 m drops to concrete and has a trigger rated for 10 million presses.

Key points

ESD safe: body and cable within 10⁵ ~ 10⁹ ohms per square
Antistatic agent mixed into the plastic, so it does not wipe off
Megapixel global-shutter sensor reads codes on labels and screens
Reads OCR, DotCode and Digimarc as well as 1D and 2D barcodes
Motion tolerant for scanning items on the move
IP42, 2.1 m drop rated, 10 million trigger presses

Suitable applications

Cleanrooms
Electronics and PCB assembly lines
Static-sensitive manufacturing areas

Full specification

Unitech MS852+ ESD (2D) datasheet The manufacturer's complete technical specification, as a PDF.

Download datasheet

View full specification

Model: MS852+ ESD
Type: 2D imager scanner, corded, ESD safe
Sensor: 1280 x 800 global shutter
Aiming: Red laser or 528 nm green LED
Illumination: White or red LED
Ambient light: 100,000 lux (sunlight)
Skew / pitch angle: ±60° / ±60°
Roll angle: 360°
Optical resolution (1D): 3 mil (0.075 mm)
Print contrast: 20% minimum
Depth of field (13 mil UPC): 3.4 ~ 57.3 cm
Depth of field (15 mil QR): 3.3 ~ 39 cm
1D symbologies: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN-8, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 DataBar, UPC-A, UPC-E, Code 32, TLC39
2D symbologies: PDF417, MicroPDF417, Codablock A/F, Aztec, Data Matrix, MaxiCode, QR Code, Han Xin, Grid Matrix, DotCode
Postal codes: Australian, British, Canadian, China, Japanese, Korea and Netherlands Post, Planet, Postnet
