- Models

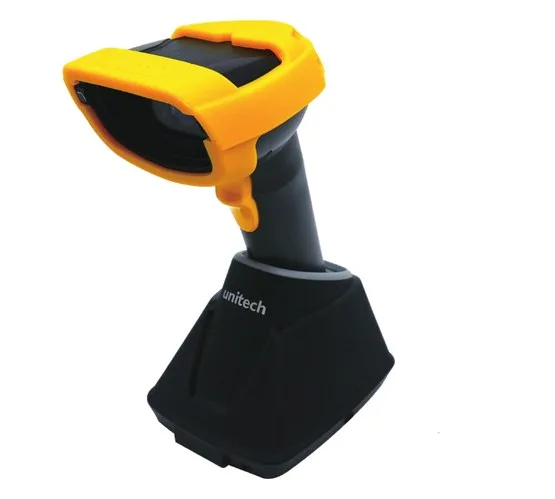

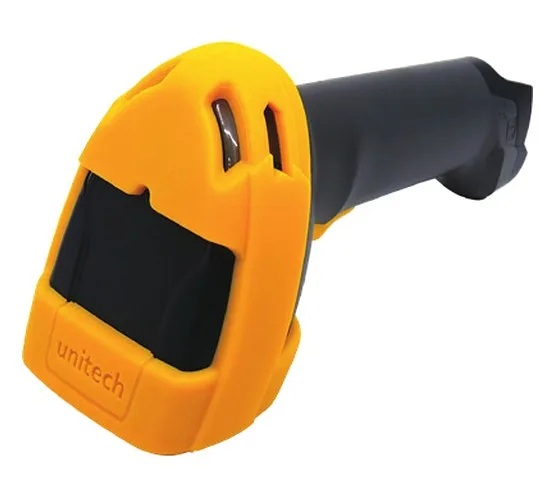

- MS852 LR (corded), MS852B LR (Bluetooth)
- Type
- 2D imager, ultra-long-range
- Sensor
- 1280 x 800 global shutter
- Aiming
- 655 nm
- Illumination
- Hyper red 660 nm
- Ambient light
- 107,639 lux
- Skew / pitch angle
- ±60° / ±60°
- Roll angle
- 0 ~ 360°
- Optical resolution
- 3.0 mil (Code 39), 5.0 mil (PDF417)
- Print contrast
- 25%
- Depth of field (13 mil UPC)
- 8.9 ~ 228.6 cm
- Depth of field (100 mil Code 39)
- 50.8 ~ 1,778 cm
- Depth of field (100 mil QR)
- 40 ~ 2,085 cm
- 2D symbologies
- PDF417 (standard, macro, micro), Composite, TLC-39, Aztec, Data Matrix, QR (standard, micro, GS1), MaxiCode, Han Xin, Grid Matrix, DotCode
- Other
- OCR barcodes, postal codes
- Interface (MS852 LR)
- USB
- Interface (MS852B LR)
- USB, RS232
- Radio (MS852B LR)
- Bluetooth LE 4.2 and Bluetooth 2.1+EDR dual mode
- Wireless range (MS852B LR)
- 100 m line of sight
- Memory (MS852B LR)
- 7 MB batch mode, 20 KB auto mode
- Power
- 4 ~ 5.5 VDC
- Current consumption
- Operating 710 mA, standby 79 mA
- Dimensions
- 87.8 x 71.6 x 177.7 mm (L x W x H)
- Cradle (MS852B LR)
- 120.6 x 88.7 x 86.0 mm
- Weight
- 184 g (MS852 LR), 233 g (MS852B LR without cradle)
- Trigger life
- 10 million presses
- Drop
- 1.8 m onto concrete (2.2 m with protective case)
- IP rating
- IP42
- ESD protection
- Functional after 8 kV contact and 15 kV air
- Operating temperature
- -20 ~ 50 °C (MS852 LR), -10 ~ 50 °C (MS852B LR)
- Storage temperature
- -40 ~ 70 °C
- Humidity
- 95% non-condensing
- Approvals
- MS852 LR: CE, FCC, BSMI, VCCI. MS852B LR: also NCC, TELEC, BQB
