POINT MOBILE PM86

A rugged 5-inch Android mobile computer with Wi-Fi 6, optional 4G LTE and a 1D/2D scan engine, sealed to IP67 and IP65.

Mobile Computers & Handheld Terminals

Model: PM86
Operating system: Android 11 / 13 (upgradable to Android 14), GMS and AOSP; FOTA updates
Processor: Qualcomm octa-core @ 2.0 GHz
Memory: 4 GB RAM / 64 GB flash (UFS); microSD up to 512 GB

Download datasheet WhatsApp us

Where it is used

Logistics & Courier
Warehousing
Retail
Hospitality

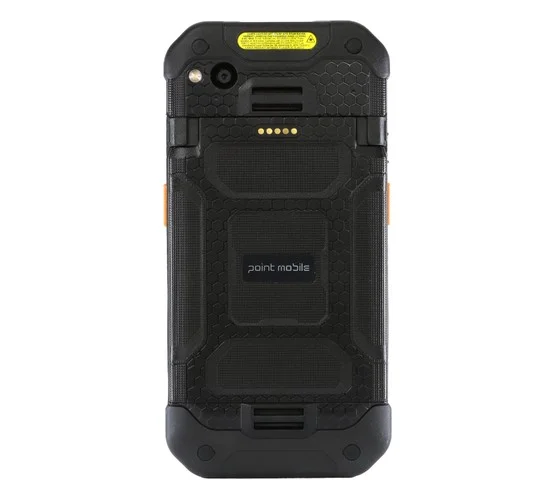

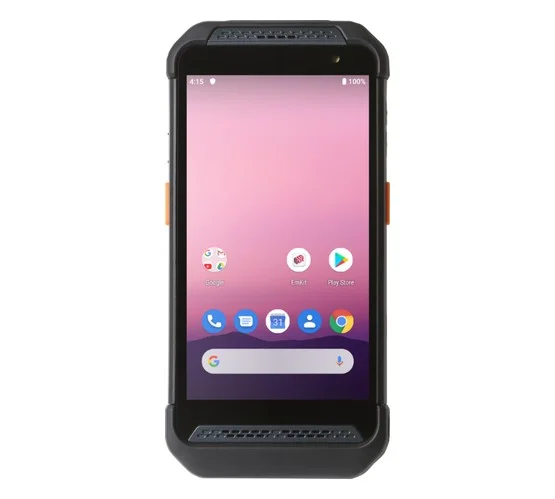

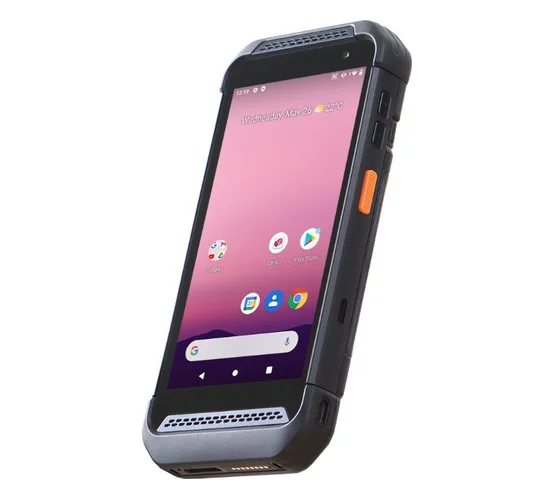

About the POINT MOBILE PM86

The Point Mobile PM86 is a rugged touch mobile computer and the successor to the PM85. A 2.0 GHz Qualcomm octa-core processor with 4 GB RAM and 64 GB storage runs Android 11 or 13, upgradable to Android 14, and a choice of three scan engines reads 1D and 2D barcodes.

Wi-Fi 6 with 2x2 MU-MIMO and optional 4G LTE keep it connected, and NFC, a 13 MP camera and a built-in UHF RFID tag for tracking the device come as standard. The 4,080 mAh battery, or 5,800 mAh extended battery, swaps without shutting down thanks to Enterprise Hot-Swap. It survives 2.0 m drops with its rugged boot, is sealed to IP67 and IP65, and works with PM85 charging cradles.

Key points

5.0" Full HD (1080 x 1920) daylight-readable touchscreen, Gorilla Glass
Android 11 / 13, upgradable to Android 14; Qualcomm octa-core 2.0 GHz, 4 GB / 64 GB
Three 1D/2D scan engine options: N3603, N6703, N6803 FR
Wi-Fi 6 with 2x2 MU-MIMO, optional 4G LTE, Bluetooth 5 with BLE beacon, NFC
IP67 and IP65; 2.0 m drops with rugged boot, 1.5 m without
Enterprise Hot-Swap battery; 4,080 mAh or 5,800 mAh extended

Suitable applications

Field service
Transport and logistics
Warehouse management
Retail
Hospitality

Full specification

POINT MOBILE PM86 datasheet The manufacturer's complete technical specification, as a PDF.

Download datasheet

View full specification

Model: PM86
Operating system: Android 11 / 13 (upgradable to Android 14), GMS and AOSP; FOTA updates
Processor: Qualcomm octa-core @ 2.0 GHz
Memory: 4 GB RAM / 64 GB flash (UFS); microSD up to 512 GB
SIM: 2 nano SIM slots; 2 micro SAM slots (optional)
Display: 5.0" IPS, 1080 x 1920 (Full HD), daylight readable (500+ nits), multi-touch capacitive, Corning Gorilla Glass
Scan engine: N3603, N6703 or N6803 FR, all reading 1D and 2D barcodes
Camera: Rear 13 MP with LED flash and auto focus; front 5 MP (optional)
Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax/d/h/i/k/r/v, 2x2 MU-MIMO
Mobile network (optional): LTE FDD B1/2/3/4/5/7/8/12/13/17/19/20/25/26/28/66; LTE TDD B38/39/40/41; WCDMA; EDGE/GPRS/GSM
Bluetooth: Class I, version 5.x, BLE; beacon transmits for up to 20 days when powered off or without the main battery
NFC: ISO/IEC 14443 A/B, ISO/IEC 15693, Mifare, FeliCa
RFID: Built-in UHF passive RFID tag for device tracking

Sensors: Proximity, ambient light, accelerometer, gyro, digital compass, SAR, barometer
Keys: Right: volume, scan. Left: power, scan
Audio: Two noise-cancelling microphones, dual front speakers (up to 100 dB), receiver, 3.5 mm headset jack
Battery: Standard 3.8 V 4,080 mAh; extended 3.85 V 5,800 mAh; back-up 60 mAh for Enterprise Hot-Swap
Dimensions: 157.5 x 78.0 x 19.6 mm (standard battery); 157.5 x 78.0 x 24.2 mm (extended battery)
Weight: 287.1 g (standard battery); 315.1 g (extended battery)
Drop: 2.0 m with rugged boot and 1.5 m without, across the operating temperature range; 1.8 m at room temperature (MIL-STD-810H)
Tumble: 1,000 cycles of 1 m (IEC 60068-2-31)
Sealing: IP67 and IP65
Operating temperature: -20 ~ 60 °C
Storage temperature: -25 ~ 70 °C
Humidity: 95% non-condensing
Warranty: 1 year (manufacturer)
