The new generation TSC mobile printer, the Alpha-30R, is user-friendly and drop-resistant. It enhances customer service, boosts productivity and improves shopper experience in retail stores. The Alpha-30R is stylish and comfortable in use and prints receipts or labels on-demand. Mobile printing operations can be carried out much faster and with more accuracy.
TSC

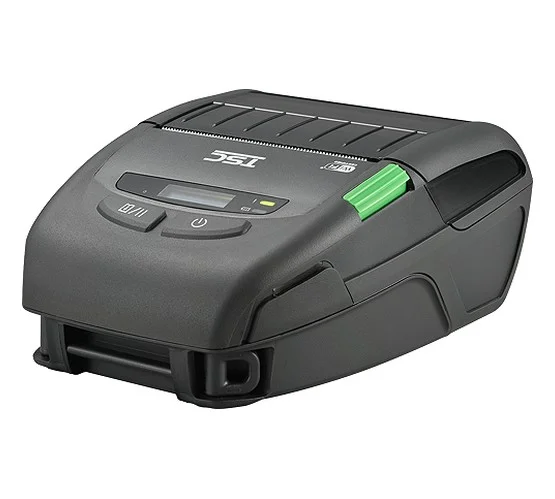

TSC Alpha 30R
A 3-inch (72 mm print width) mobile receipt and label printer, at 203 dpi and up to 5 inches per second.
- MODEL NO.
- Alpha-30R
- Printing Method
- Direct Thermal
- Printer Language
- TSPL-EZC (EPL2, ZPL2, CPCL), or ESC-POS
- Print Width
- 2.83" (72 mm)
Where it is used
-
Industrial Manufacturing
-
Logistics & Courier
-
Retail
-
Healthcare
About the TSC Alpha 30R
Key points
- The protective case enhances the extra level of protection for harsh environment especially for the outdoor usage.
- Designed for carrying the printer directly without a protective case.
- Use the belt clip for a complete hands-free solution.
- The Li-on smart battery works with TSC Console and SOTI Connect to monitor battery information, charge cycles, and remaining capacity.
- Easily charge the printer without removing the battery.
- Easily charge multiple printers without removing the battery.
- Use the 1-slot charger to quickly charge the battery without any downtime.
- The 4-slot charger is well-suited for heavy-duty missions.
- For automobile vehicle plug to charge on the car.
- Connect printer and vehicle power source directly by open-ended wire without using battery. It can be used with vehicle mount adaptor.
- Easily mount the printer on a forklift.
- The linerless kit suits linerless printing needs.
See the TSC Alpha 30R in action
Full specification
TSC Alpha 30R datasheet
The manufacturer's complete technical specification, as a PDF.
Download datasheet
View full specification
- MODEL NO.
- Alpha-30R
- Printing Method
- Direct Thermal
- Printer Language
- TSPL-EZC (EPL2, ZPL2, CPCL), or ESC-POS
- Print Width
- 2.83" (72 mm)
- Resolution
- 203 dpi (8 dots/mm)
- Print Speed (ips)
- Up to 127 mm (5”)/second
- Media Type
- Receipt paper, receipt paper with black mark in printing side, selected label, linerless (outside wound)
- Media Width
- 25.4 ~ 80 mm (1” ~ 3.15” w/ liner)
- Media Core Diameter
- Standard: 12.7 mm (0.5”) | Optional: 19.05 mm (0.75”)
- Label Roll Capacity
- 2.24" (57 mm) OD
- Ribbon Capacity
- N.A
- Wifi
- Optional
- Bluetooth
- Bluetooth 5.0
- Drop specification
- 2.1 m (6.9 ft), with protective case can be 2.5 m (8.2 ft)
- IP rating
- IP54 (w/o case, paper path is excluded)
- Enclosure
- Plastic with rubber over molded
- Physical dimension
- 118 mm (W) x 158 mm (H) x 68 mm (D) | 4.64” (W) x 6.22” (H) x 2.68” (D)
- Weight
- 0.65 kg (1.43 lbs)
- Processor
- 32-bit RISC CPU
- Display
- LCD with buttons
- Memory
- 128 MB SDRAM, 128 MB Flash
- Interface
- Either one selected | • Type C USB 2.0 + MFi Bluetooth 5.0 + Passive NFC tag | • Type C USB 2.0 + 802.11 a/b/g/n/ac with Bluetooth 4.2 + Passive NFC tag | * Type C is for communication only
- Sensor
- • Reflective sensor | • Head open sensor
- Power
- 7.4V DC, 3080 mAh Li-ion rechargeable battery
- Button
- • 3 buttons | • 2 color LED for printer status | • 1 LCD for printer status
- Environment condition
- Operation: -20 ~ 55°C (-4 ~ 131 °F), 10 ~ 90% non-condensing | Storage: -30 ~ 70°C (-22 ~ 158 °F), 10 ~ 90% non-condensing
- Motor
- Single Motor
- Operation Environment
- Comply with RoHS, WEEE
