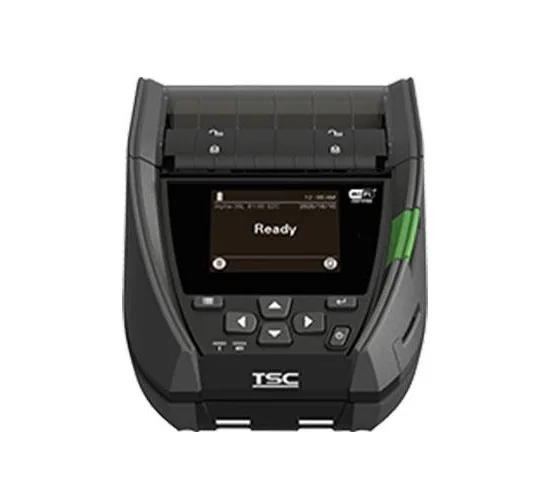

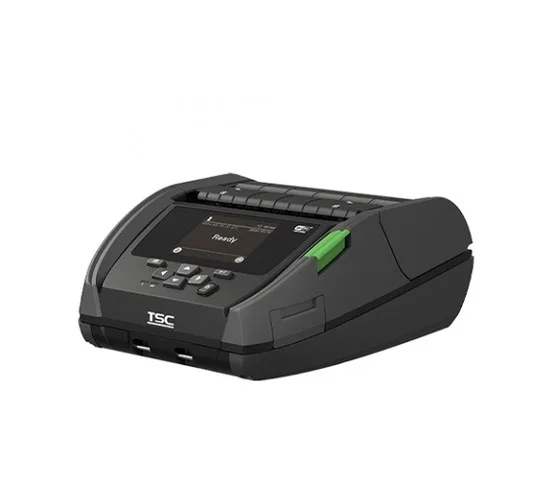

TSC Alpha 40L

A 4-inch mobile label printer for wider shipping and shelf labels on the move: drop-tested, IP54 and running a full shift on its smart battery.

Mobile Barcode Printers

MODEL NO.: Alpha-40L
Printing Method: Direct Thermal
Printer Language: TSPL-EZC (EPL2, ZPL2, CPCL), or ESC-POS
Print Width: 104 mm (4.09")

Download datasheet WhatsApp us

Where it is used

Industrial Manufacturing
Logistics & Courier
Retail
Healthcare

About the TSC Alpha 40L

TSC’s new mobile barcode label printers, the Alpha-30L and Alpha-40L are user-friendly, heavy-duty and drop-resistant. The new mobile printers propel you into the next generation of smart, enhanced technology solutions for industrial-grade label printing applications.

With the Apple-certified MFi Bluetooth® 5.0 connection and 802.11 a/b/g/n/ac Wi-Fi fast roaming features, the Alpha-30L and Alpha-40L not only provide reliable and seamless communication with users’ devices, they also securely print labels wherever they are needed.

Key points

The protective case enhances the extra level of protection for harsh environment especially for the outdoor usage.
Designed for carrying the printer directly without a protective case.
Use the belt clip for a complete hands-free solution.
The Li-ion smart battery works with TSC Console and SOTI Connect to monitor battery information, charge cycles, and remaining capacity.
Easily charge the printer without removing the battery.
Easily charge multiple printers without removing the battery.
Use the 1-slot charger to quickly charge the battery without any downtime.
The 4-slot charger is well-suited for heavy-duty missions.
For automobile vehicle plug to charge on the car
Connect printer and vehicle power source directly by open-ended wire without using battery. It can be used with vehicle mount adaptor.
Easily mount the printer on a forklift.
The linerless kit suits linerless printing needs.

See the TSC Alpha 40L in action

Full specification

TSC Alpha 40L datasheet The manufacturer's complete technical specification, as a PDF.

Download datasheet

View full specification

MODEL NO.: Alpha-40L
Printing Method: Direct Thermal
Printer Language: TSPL-EZC (EPL2, ZPL2, CPCL), or ESC-POS
Print Width: 104 mm (4.09")
Resolution: 8 dots/mm (203 dpi)
Print Speed (ips): 5 ips
Media Type: Die cut, black mark, receipt, fan-fold, linerless, continuous (outside wound)
Media Width: 50.8 ~ 112 mm (2" ~ 4.4") with liner
Media Core Diameter: • 12.7 mm (0.5"), standard | • 19.1 mm (0.75"), with 0.75" ID adaptor
Label Roll Capacity: 2.64" (67 mm) OD
Ribbon Capacity: N.A
Wifi: Optional
Bluetooth: Bluetooth 5.0
Drop specification: 1.8 m (6 ft), with protective case can be 2.5 m (8.2 ft)

IP rating: IP54 (w/o case, paper path is excluded)
Enclosure: Plastic with rubber over molded
Physical dimension: 160 mm x 191 mm x 79 mm
Weight: 985 g
Processor: 32-bit RISC CPU
Display: LCD with buttons
Memory: • Standard: 128 MB SDRAM, 128 MB Flash, microSD card reader for Flash memory expansion, up to 32 GB | • Factory Option: 256 MB SDRAM, 512 MB Flash
Interface: Either one selected | • Type C USB 2.0 + MFi Bluetooth 5.0 + Passive NFC tag | • Type C USB 2.0 + 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 + Passive NFC tag | * Type C is for communication only.
Sensor: • Reflective sensor | • Head open sensor | • Transmissive sensor • Peel sensor
Power: 7.4V DC, 6,200 mAh Li-ion rechargeable smart battery
Button: 7 buttons (Power, Feed/Pause, Menu, Navigation keys)
Environment condition: • Operation: -20 ~ 50 ˚C (-4 ~ 122 ˚F), 10 ~ 90% non-condensing | • Storage: -30 ~ 70 ˚C (-22 ~ 158 ˚F), 10 ~ 90% non-condensing | • Charging: 0 ~ 40 ˚C (32 ~ 104 ˚F), 10 ~ 90% non-condensing
Motor: Single Motor
Operation Environment: Comply with RoHS, WEEE
