TSC TDM-30

A palm-sized 3-inch (72 mm print width) mobile printer for receipts and labels.

Mobile Barcode Printers

Resolution
203 dpi (8 dots/mm)
Print Method
Direct thermal only
Display
LCD with buttons, LED with buttons
Hardwire Connectivity
USB
Download datasheet

Where it is used

  • Logistics & Courier
  • Warehousing
  • Government & Compliance
  • Product & Item Labels
  • Receipts

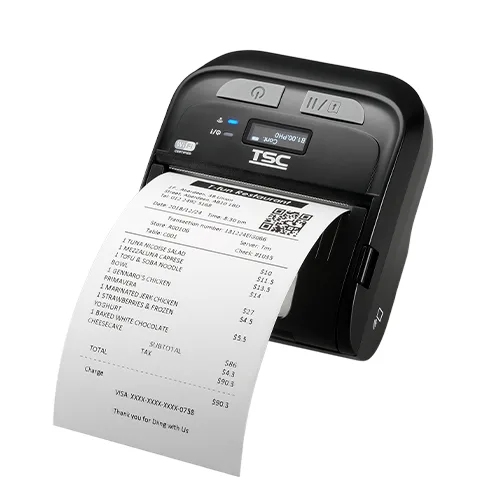

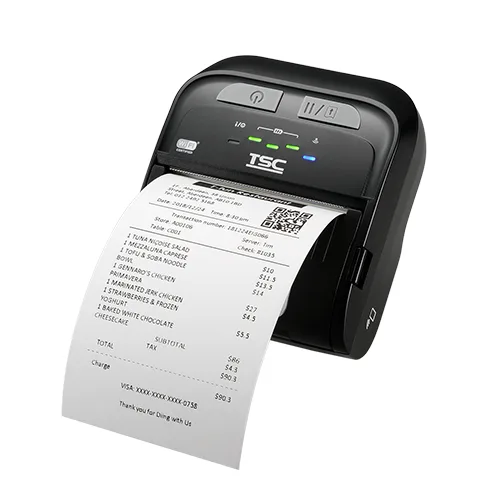

About the TSC TDM-30

The TSC TDM-30 is a palm-sized 3 inch direct thermal printer for receipts, tickets and labels on delivery rounds and shop floors. It prints at 203 dpi and up to 4 inches per second.

It connects over Bluetooth, Wi-Fi with Bluetooth, or USB, and works with ESC/POS as well as TSC's own command language.

Key points

  • Palm-sized, rugged design
  • 3 inch direct thermal printing at 203 dpi
  • Up to 4 ips print speed
  • Bluetooth MFi or Wi-Fi with Bluetooth; USB
  • Receipts, tickets and labels
  • TSPL or ESC/POS command languages

Suitable applications

  • Field service and citations
  • Transport and logistics
  • Warehouse and order fulfilment
  • Product and item labels
  • Receipts and delivery slips

See the TSC TDM-30 in action

Full specification

TSC TDM-30 datasheet The manufacturer's complete technical specification, as a PDF.
Download datasheet
View full specification
Resolution
203 dpi (8 dots/mm)
Print Method
Direct thermal only
Display
LCD with buttons, LED with buttons
Hardwire Connectivity
USB
Wireless Connectivity
Bluetooth MFi, Wi-Fi with Bluetooth
Type
Mobile
Max. Print Speed
Up to 4 ips (102 mm/s)
Max. Print Width
2.83" (72 mm)
Max. Print Length
110" (2,794 mm)
RAM
32 MB SDRAM
Flash
16 MB
Internal Label Capacity
1.57" (40 mm) OD
Max. Media Width
3.15" (80 mm), *with media hanger: 0.79" - 2.76" (20 - 70 mm)(user option)
Ribbon & Media Type
• Reflective sensor model: receipt paper, bline receipt, paper (black mark in printing side) & selected label, • Transmissive sensor model: receipt paper, bline receipt, paper (black mark in printing side or backside) & label, with gap
Min. Label Length
1" (25.4 mm)
Construction
Plastic
Programming Languages
TSPL-EZC or ESC-POS
