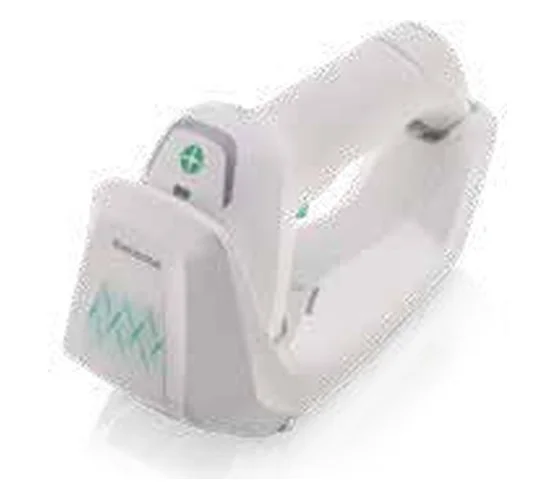

Datalogic Gryphon GBT4600 (2D) Wireless

A premium Bluetooth 2D imager with AI-assisted decoding, wireless charging and a battery or fast-charge SuperCap pack.

Handheld Bluetooth Scanners

Model: GBT4600 (Bluetooth). GM4600 uses the Datalogic STAR Cordless System
Type: Cordless handheld 2D imager
1D codes: All standard 1D codes including GS1 DataBar linear codes
2D codes: Aztec Code, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR Code, DotCode, GS1 Digital Link

Download datasheet WhatsApp us

Where it is used

Industrial Manufacturing
Retail
Healthcare
Hospitality
Point of Sale

About the Datalogic Gryphon GBT4600 (2D) Wireless

The Datalogic Gryphon GBT4600 is the Bluetooth version of the Gryphon 4600. It reads 1D and 2D barcodes, GS1 Digital Link, Digimarc and OCR, with AI-based neural decoding for damaged, distorted and reflective codes, and connects over Bluetooth 5.2 Classic and Low Energy up to 100 m away in open air.

It charges inductively in its WLC4690 base, with no contacts to clean. Choose a 3,250 mAh lithium-ion pack for 80,000+ scans per charge, or a battery-free SuperCap pack that charges fully in 30 minutes. Vibration adds to the Green Spot good-read feedback. A STAR Cordless System version (GM4600) is also available.

Key points

Bluetooth 5.2 Classic and Low Energy, up to 100 m
AI neural decoding for damaged and hard-to-read codes
Wireless (inductive) charging in the base
Lithium-ion battery or 30-minute SuperCap pack
Green cross aimer; warm white or red illumination
Vibration and Green Spot good-read feedback

Suitable applications

Retail point of sale
Work in progress and order processing
Laboratories, pharmacies and patient care
Access control, transport and ticketing
Post offices, banks and public offices

Full specification

Datalogic Gryphon GBT4600 (2D) Wireless datasheet The manufacturer's complete technical specification, as a PDF.

Download datasheet

View full specification

Model: GBT4600 (Bluetooth). GM4600 uses the Datalogic STAR Cordless System
Type: Cordless handheld 2D imager
1D codes: All standard 1D codes including GS1 DataBar linear codes
2D codes: Aztec Code, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR Code, DotCode, GS1 Digital Link
Postal codes: Australian, British, China, Japanese and KIX Post, IMB, Planet, Postnet, Royal Mail (RM4SCC)
Stacked codes: EAN/JAN Composites, GS1 DataBar Composites, Expanded Stacked, Stacked and Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
Digital watermarks: Digimarc Barcodes
OCR: OCR-A, OCR-B, MICR
Image sensor: HP models: 1.5 MP (1360 x 1120) plus VGA (640 x 600), dual sensor. HD models: 1.5 MP (1360 x 1120)
Light source: Aiming: green central cross LED. Illumination: warm white and hyper red LED, user-selectable
Motion tolerance: 70 ips
Reading angle: Pitch ±65°, roll 360°, skew ±65°
Print contrast (min.): 15%
Resolution (max.): 1D 3 mil; PDF417 3 mil; Data Matrix 4 mil
Depth of field, 13 mil EAN/UPC: HP: 0 ~ 100 cm; HD: 0 ~ 50 cm
Depth of field, 10 mil Code 39: HP: 0 ~ 60 cm; HD: 0 ~ 35 cm
Depth of field, 10 mil Data Matrix: HP: 0.5 ~ 29.5 cm; HD: 0.5 ~ 20 cm
Depth of field, 10 mil QR Code: HP: 0.5 ~ 25 cm; HD: 0.5 ~ 20 cm
Image capture: BMP, JPEG, TIFF; 256, 16 or 2 grey levels
Colours: Black, white (healthcare models with anti-microbial enclosure)

Drop: Repeated 1.8 m drops onto concrete
Tumble: 2,000 tumbles of 0.5 m
Trigger life: 10 million presses
IP rating: IP52
ESD protection: 16 kV air discharge
Ambient light: 0 ~ 110,000 lux
Operating temperature: 0 ~ 50 °C
Storage temperature: -40 ~ 70 °C
Humidity: 0 ~ 95% non-condensing
Bluetooth: Bluetooth 5.2 Classic and Low Energy; Class 1, 2 or 3; 2.4 GHz; SPP, HID and HOGP profiles; data encryption and scanner authentication
Radio range: 100 m in open air, with the base station
Scanners per base station: Up to 7
Battery: Lithium-ion 3,250 mAh: full charge 3.5 hours, 80,000+ scans per charge
SuperCap pack: 1000 F, battery free: full charge 30 minutes, 7,000 scans per charge
Base station interfaces: WLC4690: USB-C / USB / RS-232
Cradle input voltage: 4.5 ~ 14 VDC ±5%
Dimensions: 18 x 6.5 x 7.9 cm
Weight: 218 g with battery
Warranty: 3 years (manufacturer)
