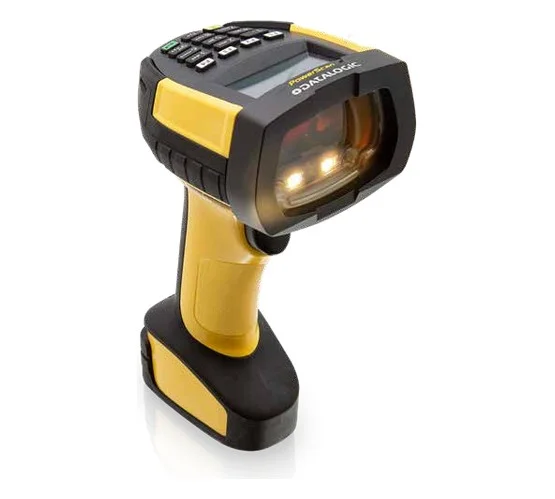

Datalogic PowerScan PBT9600 (2D) Wireless

An ultra-rugged Bluetooth 5.0 2D imager with wireless charging, IP65/IP67 sealing and a 2.5 m drop rating.

Handheld Bluetooth Scanners

Model: PBT9600 (Bluetooth). PD9630 is the corded model; PM9600 uses the Datalogic STAR Cordless System
Type: Industrial cordless 2D area imager
Optics: Standard Range (SR) or High Performance (HP)
1D codes: All standard 1D codes including GS1 DataBar linear codes

WhatsApp us

Where it is used

Industrial Manufacturing
Logistics & Courier
Warehousing
Automotive

About the Datalogic PowerScan PBT9600 (2D) Wireless

The Datalogic PowerScan PBT9600 is an ultra-rugged cordless area imager for 1D, 2D, postal and stacked codes on the shop floor and in the warehouse. It comes with Standard Range optics for everyday reading or High Performance optics for high-density codes and longer reach, up to 2.4 m on large Code 128 labels, with Digimarc decoding on HP models.

Bluetooth 5.0 connects it to its base or any Bluetooth device up to 100 m away. It charges inductively in the BC9600 base, so there are no contacts or pins to bend, break or clean, and gives about 80,000 reads per charge. It is sealed to IP65 and IP67, survives 50 drops from 2.5 m and a 10-million-press trigger, and its balanced shape reduces operator strain. The modular base takes RS-232, USB, Ethernet and industrial protocol plug-ins. A STAR Cordless System version (PM9600) adds an OLED display and keypad options.

Key points

Reads 1D, 2D, postal and stacked codes; Digimarc on HP
Standard Range or High Performance optics
Bluetooth 5.0, up to 100 m in open air
Wireless (inductive) charging, about 80,000 reads per charge
IP65 and IP67; 50 drops from 2.5 m; 10 million trigger presses
Modular base: RS-232, USB, Ethernet and industrial protocols

Suitable applications

Manufacturing shop floor and work in progress
Sub-assembly, component tracking and quality control
Warehouse shipping, receiving, picking and put-away
Parcel preparation and sorting back-up
Forklift scanning with a vehicle mount

Full specification

Model: PBT9600 (Bluetooth). PD9630 is the corded model; PM9600 uses the Datalogic STAR Cordless System
Type: Industrial cordless 2D area imager
Optics: Standard Range (SR) or High Performance (HP)
1D codes: All standard 1D codes including GS1 DataBar linear codes
2D codes: Aztec Code, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR Code, DotCode
Postal codes: Australian, British, China, Japanese and KIX Post, IMB, Planet, Postnet, Royal Mail (RM4SCC)
Stacked codes: EAN/JAN Composites, GS1 DataBar Composites, Expanded Stacked, Stacked and Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
Digital watermarks: Digimarc Barcodes (HP models)
Image sensor: 1280 x 800 pixels
Field of view: 38° H, 24° V
Light source: Aiming: 630 ~ 680 nm VLD. Illumination: white LED
Print contrast (min.): 15%
Reading angle: Pitch ±52°, roll 360°, skew ±52°
Resolution (max.): SR: 1D 3 mil, 2D 6 mil. HP: 1D 2.5 mil, 2D 4 mil
Depth of field, 13 mil EAN/UPC: SR: 4 ~ 67.5 cm; HP: 4 ~ 120 cm
Depth of field, 40 mil Code 128: SR: 5.5 ~ 175 cm; HP: 5.5 ~ 242.9 cm
Depth of field, 10 mil Data Matrix: SR: 6 ~ 30 cm; HP: 4.2 ~ 32 cm
Depth of field, 10 mil PDF417 (HP): 0.5 ~ 46.1 cm
Reading indicators: Adjustable beeper, 3GL (three green lights), Green Spot, dual good-read LEDs, vibration
Bluetooth: Bluetooth 5.0, Class 1, 2 and 3; 2.4 GHz; SPP and HID profiles; data encryption and scanner authentication
Radio range: 100 m in open air, with the base station

Battery: Lithium-ion 3,350 mAh, removable
Charging: Wireless (inductive) in the BC9600 base
Charge time: 2.5 hours to 95%, 3.2 hours to full, at 12 VDC
Reads per charge: 80,000
Input voltage: Host powered 5 VDC ±5% or 10 ~ 30 VDC; external power supply 10 ~ 30 VDC ±5%
Interfaces: RS-232, USB, Ethernet and industrial protocols, through the modular base
Base stations: BC9630 base station/charger, multi-interface; BC9631 base station/charger, multi-interface, IP65
Colour: Yellow/black
Dimensions: 19.7 x 14.9 x 7.9 cm
Weight: 415 g
Drop: 50 drops from 2.5 m at 20 °C; 50 drops from 2.0 m at -20 °C
Trigger life: 10 million presses
IP rating: IP65 and IP67; cradle IP65 (specific models)
ESD protection: 20 kV air discharge
Ambient light: 0 ~ 100,000 lux
Operating temperature: -20 ~ 50 °C
Charging temperature: 0 ~ 40 °C
Storage temperature: -40 ~ 70 °C
Humidity: 0 ~ 95% non-condensing
Warranty: 3 years (manufacturer)
