- Model

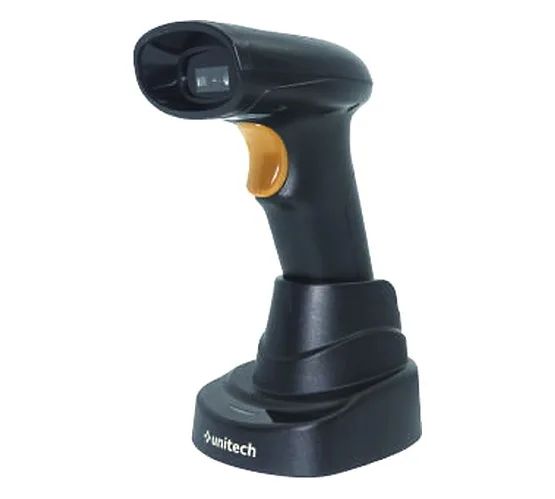

- MS822B (MS840-MS822B)
- Type
- 2D imager scanner, cordless
- Sensor
- CMOS, 1280 x 800 pixels
- Aiming
- 625 nm LED
- Illumination
- 6000 ~ 6500 K
- Ambient light
- 0 ~ 100,000 lux
- Scan rate
- 60 fps
- Skew / pitch angle
- ±65° / ±65°
- Roll angle
- 360°
- Optical resolution
- 3 mil (Code 39), 3 mil (EAN13)
- Depth of field
- 50 ~ 510 mm (13 mil EAN13)
- 1D symbologies
- Codabar, Code 11, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 128, GS1-128, UPC-A, UPC-E, EAN-8, EAN-13, GS1 DataBar (incl. Limited and Expanded)
- 2D symbologies
- PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code
- Operation mode
- Trigger, buffer, presentation
- Memory
- 4 MB
- Radio
- 2.4G wireless; Bluetooth 4.2 Class 2
- Range
- 2.4G: 100 m line of sight; Bluetooth: 10 m
- Profiles
- 2.4G: USB; Bluetooth: HID, BLE, SPP
- Host interface
- USB Type-C
- Battery
- 2,600 mAh Li-ion (18650), removable
- Charging time
- About 6 hours
- Operating time
- Over 40 hours
- Current consumption
- Operating < 290 mA, standby < 55 mA
- Dimensions
- 161 x 72 x 96.5 mm (L x W x H)
- Cradle
- 106 x 80.5 x 70 mm
- Weight
- 180 g
- Trigger life
- 1,000,000 presses
- Drop
- 1.5 m onto concrete (scanner only)
- IP rating
- IP52
- ESD protection
- Functional after 4 kV contact and 8 kV air
- Operating temperature
- -10 ~ 50 °C
- Storage temperature
- -20 ~ 60 °C
- Humidity
- 5 ~ 95% non-condensing
- Approvals
- CE, FCC, BSMI, VCCI, NCC, TELEC, IC, UKCA
- In the box
- Scanner, cradle with 2.4G dongle and cable
